900V, 1.6mA Power Amplifier with Low Standby Current

  • High voltage – 900V (±450V)
  • Low quiescent current – 1.6mA
  • High output current – 100mA continuous, 200mA PEAK
  • Programmable current limit

 PA95 Data Sheet

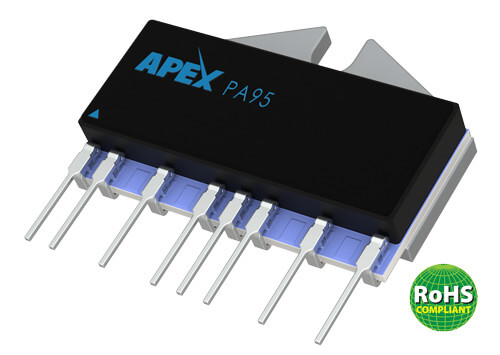

The PA95 is a 900V power operational amplifier designed as a low cost solution for driving continuous output currents up to 100mA and pulse currents up to 200mA for high voltage applications including instrumentation, piezoelectric transducers, and electrostatic transducers and deflection. This MOSFET power amplifier exhibits a very low 1.6mA of quiescent current and external compensation provides flexibility in choosing bandwidth and slew rate for the application. Housed in a space saving, electrically isolated 8-pin PowerSIP package, the PA95 lends itself to high-density circuit board layouts.

Piezoelectric Positioning
Variant Vos (mV) IB (pA) IIO (pA) Temp Range (°C) Package Option Purchase
PA95 5 2000 500 -25 to 85 8-pin SIP DQ
PA95EC 5 2000 500 -25 to 85 8-pin SIP EC (formed leads)
PA95RC 5 2000 500 -25 to 85 8-pin SIP RC (formed leads 90° toward heat tab)
