PB63

1,000V/µs, 1MHz Power Bandwidth, Dual Channel Power Booster Amplifier

  • High slew rate – 1,000V/µs
  • High power bandwidth – 1MHz
  • High voltage operation – 40V to 200V
  • High output current – 2A Continuous

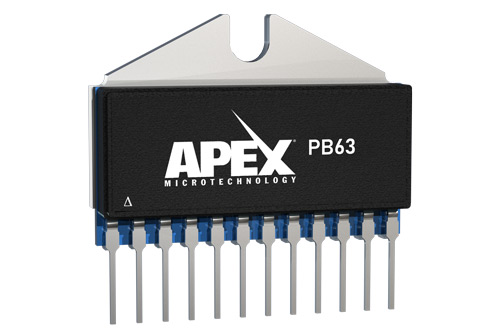

Apex Microtechnology's PB63, a 1,000V/µs, 1MHz Power Bandwidth, Dual Channel Power Booster Amplifier

The PB63 is a high density, dual channel power booster amplifier designed to deliver slew rates of up to 1,000V/µs and power bandwidth of 1MHz for use in high voltage instrumentation, such as pattern generators in flat panel display inspection systems, semiconductor PPS V/I sources, and print head driver electronics in industrial ink jet printers. The PB63 maximizes design flexibility when used in tandem with a general-purpose small signal op amp.

The user defined driver and booster combination tailors voltage and current gain and optimizes accuracy, offset, input noise and settling time. The power booster’s dual channel design further extends circuit layout flexibility by allowing each booster channel to be paired with separate small signal amplifiers operating with different parameters. The PB63 can be used without a small signal driver in some applications requiring only an external current limit resistor to function properly.

The PB63A is the A grade version providing enhance performance in the areas of offset voltage and input bias current. The output current per channel also improves to 2A typical versus a “PEAK” 2A performance with the base model PB63.

Variant Input Bias Current (μA) Vos (mV) Temp Range (°C) Package Option IO (A) Purchase
PB63DP 50 20 -25 to 85 12-pin SIP DP 2 PEAK BUY NOW
PB63DPA 25 10 -25 to 85 12-pin SIP DP 2 Continuous BUY NOW

See how the PB63 fits your system requirements Use our Power Design Tool to assist with designing high power analog circuits. Apex Microtechnology's Power Design Tool
