Linear Amplifiers

PA340

350V, 120mA PEAK Power Amplifier with Low Standby Current

  • Voltage supply operation - 350V
  • High output current - 120mA PEAK
  • Low quiescent current - 2.2mA Typical
  • Monolithic MOS technology
  • RoHS Compliant
BUY NOW REQUEST A SAMPLE REQUEST A QUOTE
PA340 - Apex's low cost, high voltage power amplifier.

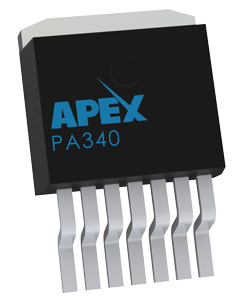

The PA340CC is a low cost, high voltage power amplifier. This IC is a MOSFET operational amplifier that achieves performance features previously found only in hybrid designs while increasing reliability. Inputs are protected from excessive common mode and differential mode voltages. The safe operating area (SOA) has no second breakdown limitations. External compensation provides the user flexibility in choosing optimum gain and bandwidth for the application. The surface mount package of the PA340CC is an industry standard, non-hermetic plastic 7-pin DDPak.

Variant Vos (mV) IB (pA) IIO (pA) Temp Range (°C) Package Option Power Dissipation (W) Purchase
PA340CC 40 200 200 -25 to 85 7-pin DDPAK, SMT 14 BUY NOW
