Power Op Amp Combines 1700 V/µs Slew Rate, 900 V Supply Operation with Low Noise Density for Applications Demanding High Speed and High Accuracy

  • Very low noise density -- ∼5 nV/√Hz @ 10 kHz (typical)
  • High slew rate – 1700 V/µs
  • High supply voltage operation – 900 V
  • Output current – 100 mA continuous, 200 mA peak

Note: Samples are available now in limited quantity. To request a sample, please click here.

 PA194 Data Sheet

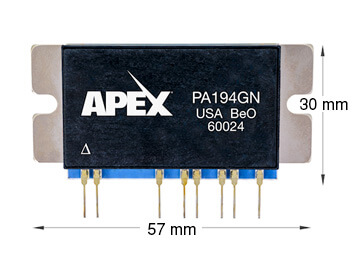

The PA194 is a refined implementation of the PA94 power operational amplifier, capable of providing higher speed at 1700 V/µs and very low noise of ∼5 nV/√Hz @ 10 kHz (typical). It is ideal for applications where high speed analog precision is paramount for system operation. Working with voltages of up to 900 V, the PA194 can provide 100 mA of continuous output current. The amplifier consumes ∼4 mA of quiescent current in an integrated standby mode for increased efficiency. The PA194 is housed in an 8-pin power SIP package with heat tab to require minimal board space and facilitate ‘easy’ heat sinking.

Typical Charged Particle Beam Deflection Circuit
Variant Output Current, Continuous Supply Voltage Slew Rate
PA194 100 mA 900 V 1700 V/µs
PA94 100 mA 900 V 700 V/µs
