SA306

60V, 8A Low Cost PWM Brushless Motor Driver IC

  • Low cost three phase intelligent switching amplifier
  • Wide supply range – 8.5V to 60V
  • Directly connects to most embedded microcontrollers and digital signal controllers
  • Integrated gate driver logic with dead-time generation and shoot-through prevention
  • High output current per phase – 8A continuous, 15A PEAK
  • Independent current sensing for each output
  • User programmable cycle-by-cycle current limit protection
Apex Microtechnology's SA306, a 60 V, 8 A Low cost PWM Brushless Motor Driver IC

The SA306A is a fully integrated switching amplifier designed primarily to drive three-phase Brushless DC (BLDC) motors. Three independent half bridges provide over 15 amperes peak output current under microcontroller or DSC control.

Thermal and short circuit monitoring is provided, which generates fault signals for the microcontroller to take appropriate action.

Additionally, cycle-by-cycle current limit offers user programmable hardware protection independent of the microcontroller. Output current is measured using an innovative low loss technique.

The SA306A is built using a multi-technology process allowing CMOS logic control and complementary DMOS output power devices on the same IC. Use of P-channel high side FETs enables 60V operation without bootstrap or charge pump circuitry.

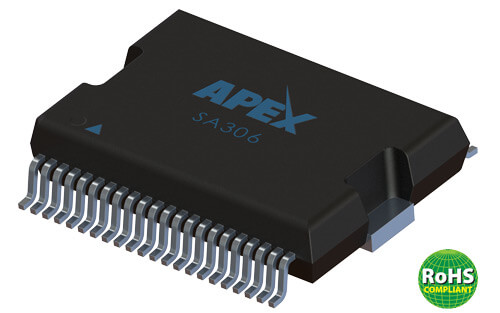

The HSOP surface mount package balances excellent thermal performance with the advantages of a low-profile surface mount package.

Variant Outputs Temp Range (°C) Package Option Purchase
SA306AHR 3 outputs -40 to 125 44-pin HSOP HR (slug down) BUY NOW
SA306AHU 3 outputs -40 to 125 44-pin HSOP HU (slug up) BUY NOW
SA57AHU 2 outputs -40 to 125 44-pin HSOP HU (slug up) BUY NOW
