Linear Amplifiers

PA168/PA168A

200V, 12A PEAK, High Density, Multi-Purpose Power Amplifier IC

  • High continuous output current – 4A/8A
  • High PEAK output current – 10A/12A
  • High supply voltage operation – 200V
  • Internal power dissipation – 52W
  • Monolithic MOS technology for amplifier core
  • Temperature compensated current limit with over-current flag
  • Surface mount QFP style package with heat slug on top for efficient heat sinking of multiple devices
REQUEST A SAMPLE REQUEST A QUOTE

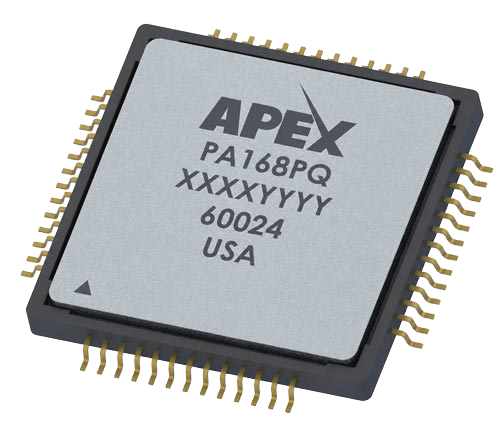

Apex Microtechnology's PA168, a 10A, 200V, High Density, Multi-Purpose Power Amplifier IC

The PA168 is a high voltage MOSFET operational amplifier with a monolithic amplifier core designed for high density power applications with high output currents or voltages. The device is designed for output voltages up to 205V, with the PA168 providing 4A (8A A grade) of continuous current. Separate supplies for the amplifier core and the output stage optimize the overall power dissipation in the devices. The PA168 offers a wide-range, temperature compensated current limit. An additional over-current flag allows for a flexible implementation of system protection, with an output disable function adding another layer of optional protection. External compensation provides the user flexibility in choosing optimum gain and bandwidth for the application.

  • High Density Voltage or Current Supplies
  • Electrostatic Transducers
  • Deflection
  • Deformable Mirror Positioning
  • Piezo Electric Positioning
Variant Output Current Continuous Output Current PEAK Purchase
PA168A 8A 12A REQUEST A SAMPLE
PA168 4A 10A REQUEST A SAMPLE
