VRE210

+10V, Low Drift Precision Voltage Reference

  • High accuracy – +10V output, ±0.5mV
  • Low drift – 1.11ppm/°C (-55°C to +125°C)
  • Low warm-up drift – 1ppm typical
  • Excellent stability – 6ppm/1000 hours typical
  • Excellent line regulation – 3ppm/V typical
  • Military processing option
Apex Microtechnology's VRE210, a +10 V Low Drift Precision Voltage Reference

The VRE210 series of precision voltage references provides ultra-stable +10V outputs with ±0.5mV initial accuracy and a temperature coefficient as low as 1.11ppm/°C over the full military temperature range. This improvement in accuracy is made possible by a unique proprietary multipoint laser compensation technique. Significant improvements have been made in other performance parameters as well, including initial accuracy, warm-up drift, line regulation, and long-term stability, making the VRE210 series the most accurate and stable 10V surface mount references available.

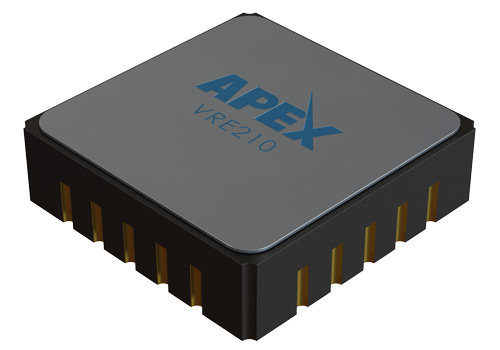

VRE210 devices are available in two operating temperature ranges, -25°C to +85°C and -55°C to +125°C, and two electrical performance grades. All devices are packaged in 20-terminal ceramic LCC packages for maximum long-term stability. “M” versions are screened for high reliability and quality.

Variant Volt Deviation (mV) Temp Range (°C) Package Option Purchase
VRE210CA ±0.6 -25 to 85 20-terminal LCC HD BUY NOW
VRE210M ±1.2 -55 to 125 20-terminal LCC HD BUY NOW
VRE210MA ±1.0 -55 to 125 20-terminal LCC HD BUY NOW
